stakpure reverse osmosis systems & electro-deionisation.

For centralised supply. Type II + 285 Water.

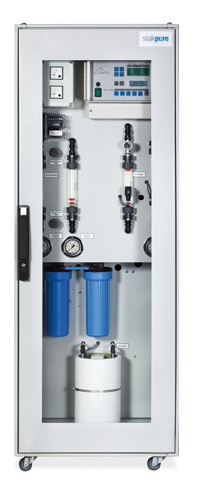

stakpure RO ED cabinet

RO system with integrated electro-deionisation. Cabinet version with lockable door and observation window. Multilingual microprocessor control with LCD display for controlling and monitoring electro-deionisation systems. Display of permeate and pure water conductivity with limiting value setting capability and temperature compensation. Fully automatic rinsing cycles, potential-free fault reporting relay. Module-based capability of increasing capacity at a later stage.

Overview

stakpure RO ED cabinet50-80130-170270-300
Ultrapure water output at 10 °C50-80 l/h130-170 l/h270-300 l/h
Ultrapure water quality0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*
Max. operating pressure14 bar14 bar14 bar
Power consumption0.9 kW0.9 kW0.9 kW
Mains voltage230 V/50-60 Hz230 V / 50 Hz230 V / 50 Hz
Dimensions mm (W x D x H)600 x 610 x 1670600 x 610 x 1670600 x 610 x 1670
Weight148 kg158 kg171 kg
Order no.174000801740017017400300
* depending on feed water quality
RO ED systems with control unit and bus systems such as BACnet are also available on request.

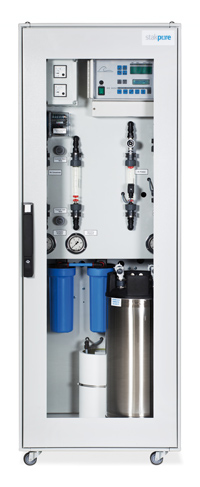

stakpure RO ED ultra

RO system with integrated electro-deionisation and recirculation module (polisher). Multilingual microprocessor control with LCD display for controlling and monitoring electro-deionisation systems. Display of permeate and pure water conductivity with limiting value setting capability and temperature compensation. Fully automatic rinsing cycles, potential-free fault reporting relay. Module-based capability of increasing capacity at a later stage

Overview

stakpure RO ED ultra50-80130-170270-300
Ultrapure water output at 10 °C50-80 l/h130-170 l/h270-300 l/h
Ultrapure water quality0.067 – 0.1 μS/cm*0.067 – 0.1 μS/cm*0.067 – 0.1 μS/cm*
Max. operating pressure14 bar14 bar14 bar
Power consumption0.9 kW0.9 kW0.9 kW
Mains voltage230 V/50-60 Hz230 V / 50 Hz230 V / 50 Hz
Dimensions mm (W x D x H)600 x 610 x 1670600 x 610 x 1670600 x 610 x 1670
Weight172 kg184 kg197 kg
Order no.175000801740017017500300
* depending on feed water quality
RO ED systems with control unit and bus systems such as BACnet are also available on request.

stakpure RO ED central

RO system with integrated electro-deionisation on stainless-steel frame. Multilingual microprocessor control with LCD display for controlling and monitoring electro-deionisation systems. Display of permeate and pure water conductivity with limiting value setting capability and temperature compensation. Fully automatic rinsing cycles, potential-free fault reporting relay. Module-based capability of increasing capacity at a later stage.

Overview

stakpure RO ED central5008001100
Ultrapure water output at 10 °C500 l/h800 l/h1100 l/h
Ultrapure water quality0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*
Max. operating pressure14 bar14 bar14 bar
Power consumption3.5 kW3.5 kW3.5 kW
Mains voltage380/50-60 V/Hz380/50-60 V/Hz380/50-60 V/Hz
Dimensions mm (W x D x H)1400 x 600 x 18001400 x 600 x 18001400 x 600 x 1800
Weight360 kg370 kg400 kg
Order no.173005001730080017301100

stakpure RO ED central

RO system with integrated electro-deionisation on stainless-steel frame. Multilingual microprocessor control with LCD display for controlling and monitoring electro-deionisation systems. Display of permeate and pure water conductivity with limiting value setting capability and temperature compensation. Fully automatic rinsing cycles, potential-free fault reporting relay. Module-based capability of increasing capacity at a later stage.

Overview

stakpure RO ED central2000 3000400050006000
Ultrapure water output at 10
°C		2000 l/h3000 l/h4000 l/h5000 l/h6000 l/h
Ultrapure water quality0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*
Max. operating pressure14 bar14 bar14 bar14 bar14 bar
Power consumption3.5 kW3.5 kW3.5 kW5.5 kW5.5 kW
Mains voltage380/50-60 V/Hz380/50-60 V/Hz380/50-60 V/Hz380/50-60 V/Hz380/50-60 V/Hz
Dimensions mm (W x D x H)2800 x 900 x 18002800 x 900 x 18002800 x 900 x 18002800 x 900 x 18002800 x 900 x 1800
Weight520 kg570 kg580 kg610 kg650 kg
Order no.1730200017303000173040001730500017306000
*depending on feed water quality
RO systems with control unit and bus systems such as BACnet are also available on request.
