stakpure reverse osmosis systems & electro-deionisation.

Compact units for decentralised supply. Type II + 285 Water.

stakpure RO ED ready

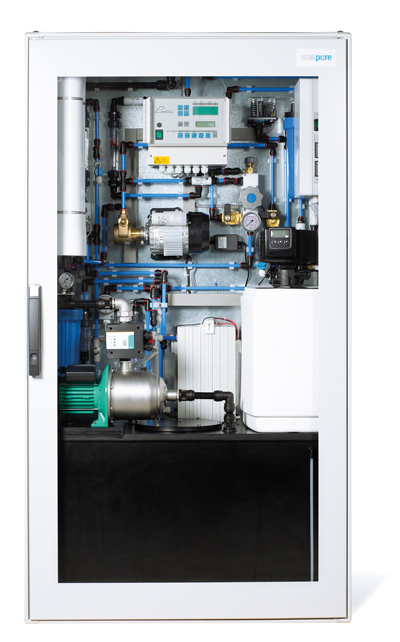

„All in one“ unit in a cabinet with lockable door and observation window. All components (pretreatment, water softening, reverse osmosis, electro-deionisation, pure water tank with level control and pressure booster) are integrated and premounted ready to connect. Multilingual microprocessor controller with LCD display for controlling and monitoring pure water systems. Display of permeate and pure water conductivity, fully automatic rinsing cycles, potential-free fault reporting relay. Module-based capability of increasing capacity at a later stage.

Overview

stakpure RO ED ready50 – 80130 – 170270 – 300
Pure water performance at 10 °C50-80 l/h130-170 l/h270-300 l/h
Pure water quality0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*
Power consumption1.5 kW1.5 kW1.5 kW
Mains voltage230/50-60 V/Hz230/50-60 V/Hz230/50-60 V/Hz
Max. operating pressure14 bar14 bar14 bar
Dimensions mm (W x D x H)1020 x 600 x 18501020 x 600 x 18501020 x 600 x 1850
Weight270 kg280 kg290 kg
Order no.176000801760017017600300
* depending on feed water quality
RO ED ready systems with circulation modules for ring line connection are also available on request.

RO ED ready

stakpure RO ED ready mini

„All in one“ unit for space-saving integration into a 90s base. All components (pretreatment, reverse osmosis, electro-deionisation, storage tank with level control and pressure booster) are integrated and premounted ready to connect. Multilingual microprocessor controller with graphic display for controlling and monitoring pure water systems. Display of permeate and pure water conductivity as well as tank volume in %. Module-based capability of increasing capacity at a later stage.

Overview

stakpure RO ED ready mini2040
Pure water performance at 15 °C20 l/h40 l/h
Pure water conductivity0.1 – 1.0 μS/cm*0.1 – 1.0 μS/cm*
Power consumption1.1 kW1.1 kW
Mains voltage230/50-60 V/Hz230/50-60 V/Hz
Max. operating pressure6 bar6 bar
Dimensions mm (W x D x H)800 x 600 x 800800 x 600 x 800
Weight65 kg70 kg
Order no.1780002017800040
* depending on feed water quality
RO ED ready mini systems with circulation modules for ring line connection are also available on request.

RO ED ready
